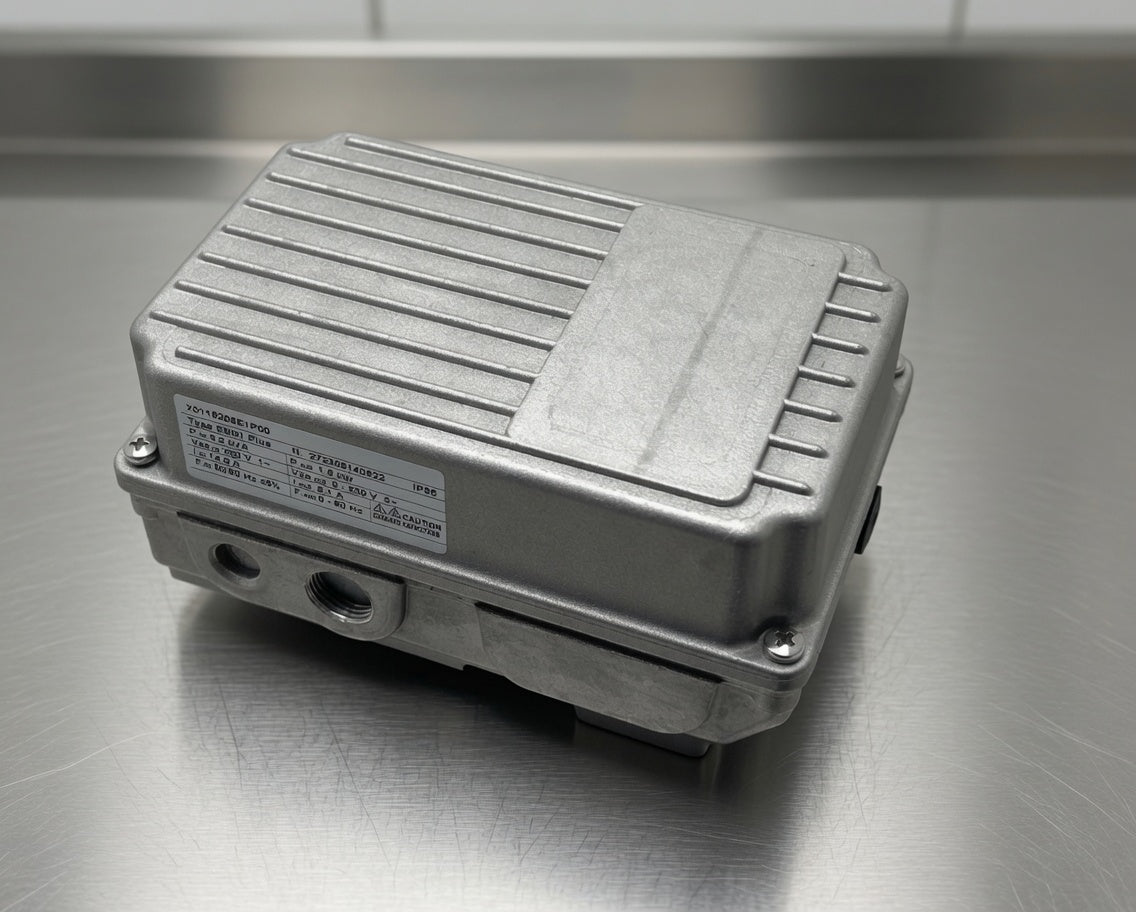

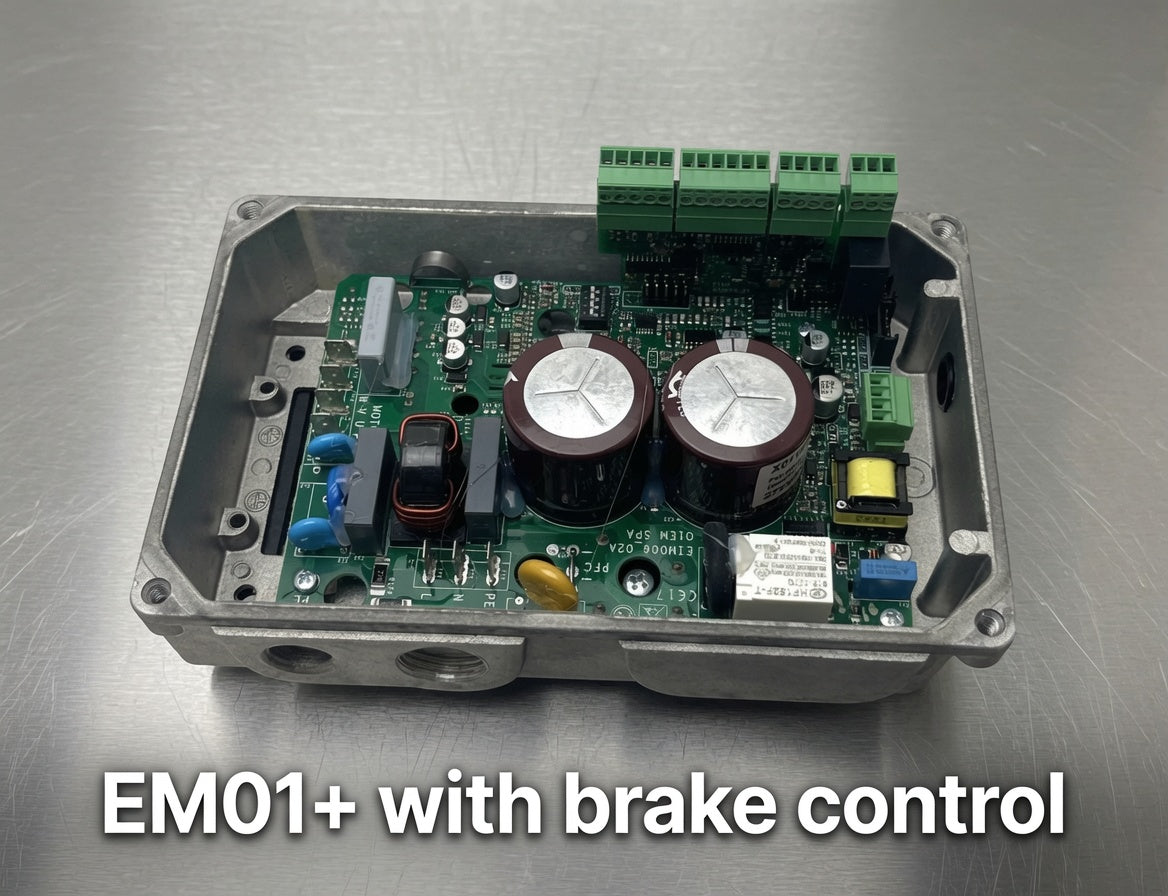

EM01+ brake control & IP56 case.

TVT® EM01+

• 200-240V Single Phase AC Input, 14.0Amp   3.2 kVA
• 0-240V Three Phase AC Output, 6.1Amp
• programmable 10A relay for brake control or other. Can be set to energize at fault, at frequency, at start, and more.
• Suitable for 3ph AC motors to 1.5kW or 6.1Amp at 230Vac rated.
• 12Vdc output for accessories.
• 1/2" NPT inlet.

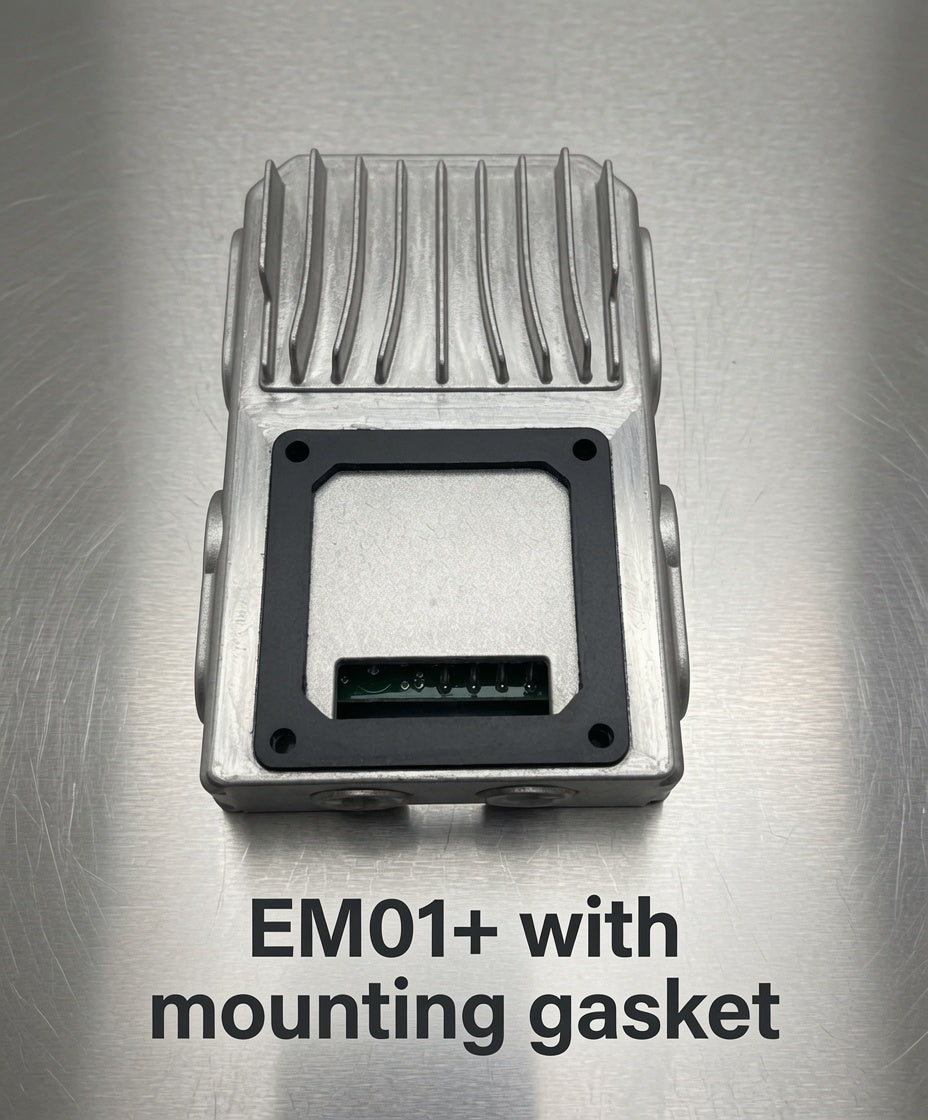

• Complete with new VFD to motor gasket.
• Stainless steel Phillips fasteners for cover included.
• End of life product superseded by Solacrion® system.
• Part# X0115205EP00

Programming Manual

Lift Programming Manual (set for cargolift)

HMI Human Machine Interface for programming, diagnostics sold separately.

Pre-programmed to accelerate from 0 to 60Hz output in 1.5 seconds, and 60 to 0Hz output in 1.5 Seconds.  Preset inputs for Run-Forward and Run-Reverse operation through dry contact terminal strip inputs.

100% Made in Italy

OEM replacement for Legacy Lifts cargo lift control.
