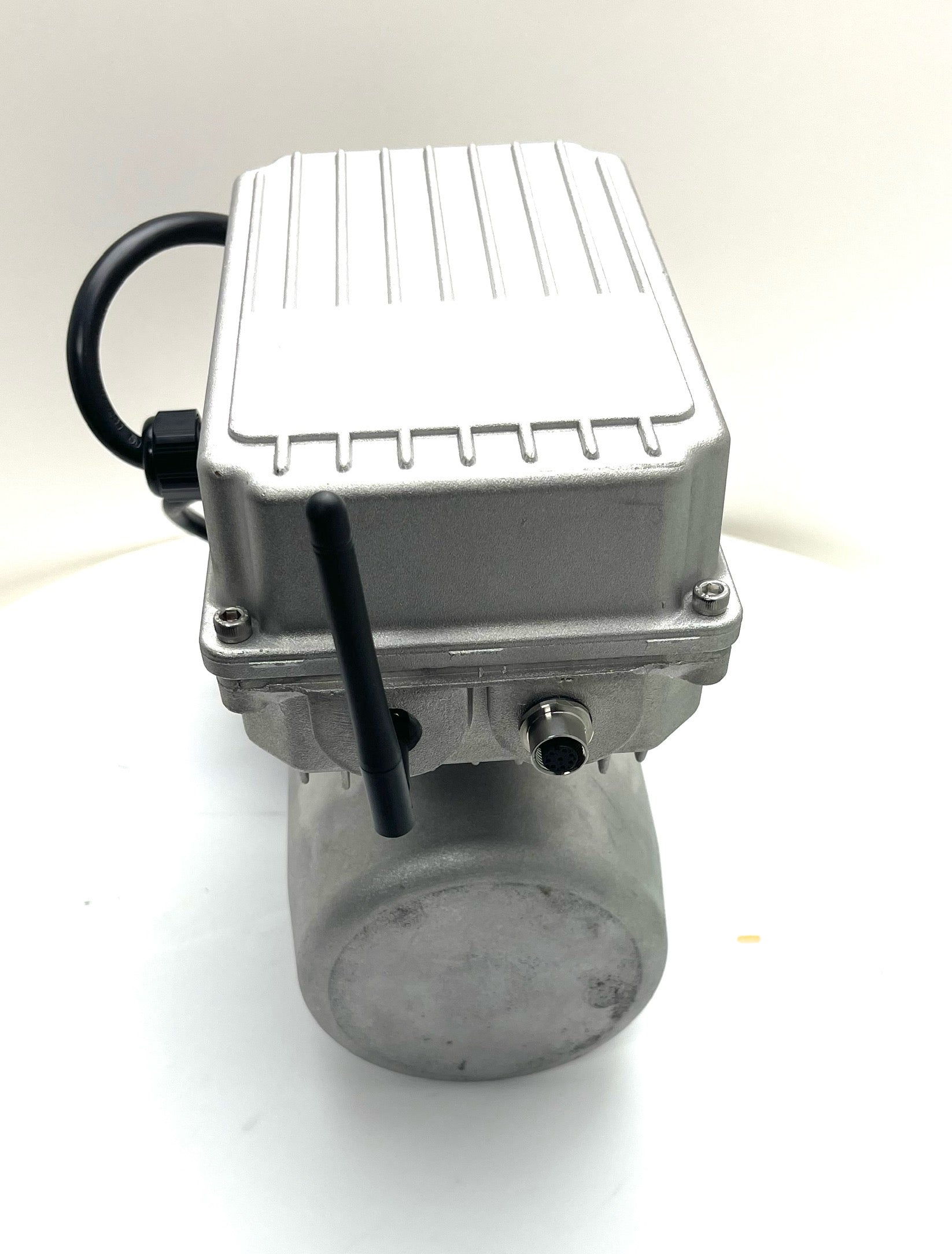

Solacrion® - 110V/1ph 1.5hp 2-stop 433Mhz lift system.

Solacrion 2 stop Lift System  110/120Vac 1PH With Marine Motor

• Quiet Operation - motor is silent.
• 1.5 horse power at 1700 rpm.
• 150% starting torque for 90 seconds standard.
• Programable soft start/stop (preset to 1.5 seconds, but fully adjustable).

• Adjustable travel rate, current limit, over temp protection, as well as diagnostics control integrated and included in every Solacrion.
• Integrated UP and DOWN normally open control.
• 433Mhz Radio Frequency UP/STOP/DOWN control integrated into system.

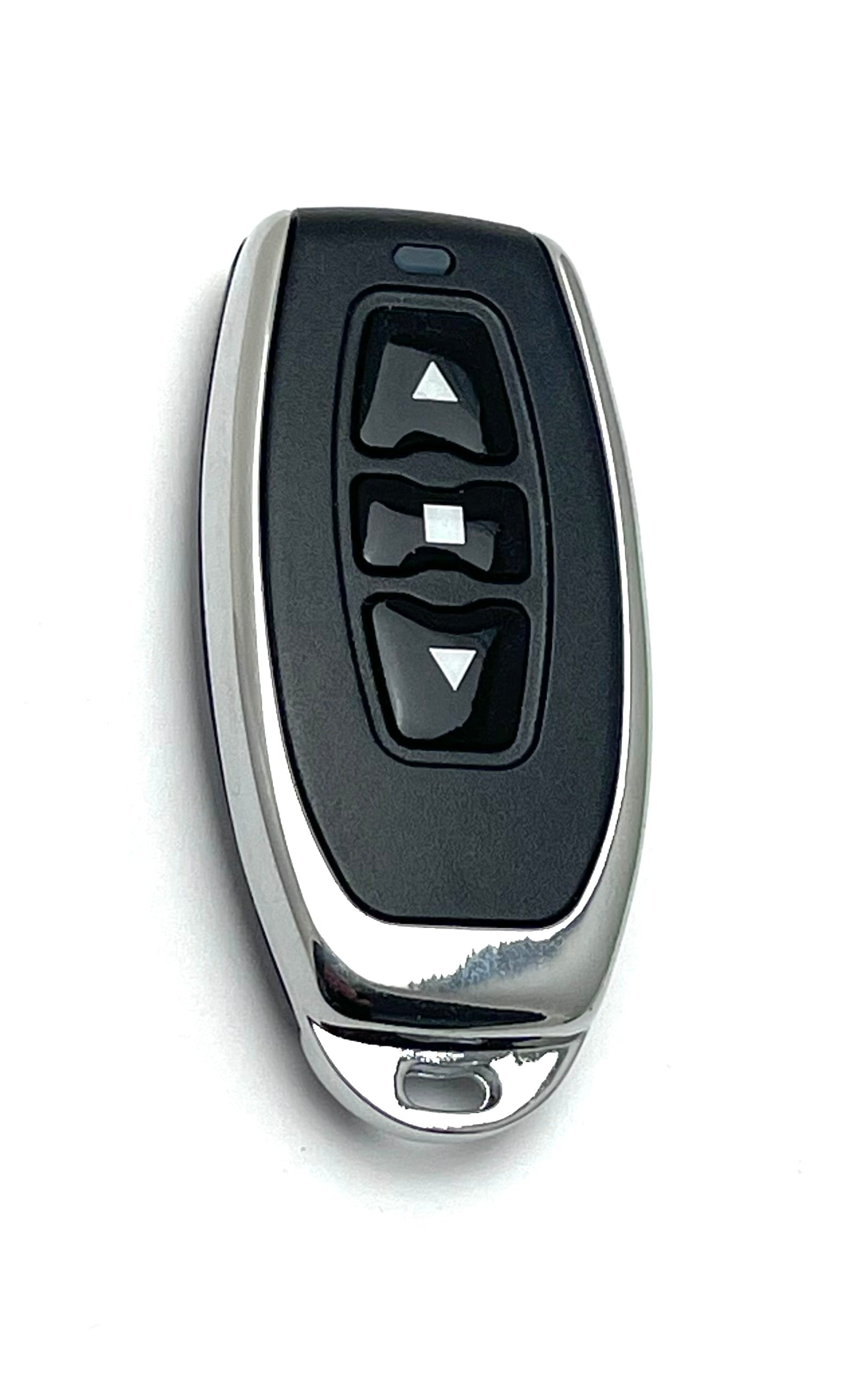

• Two pre-programmed RF FOB type controls included, each with millions of possible digital keys, your neighbors boat or cargo lift system has a 1/10,000,000 chance of being same key.

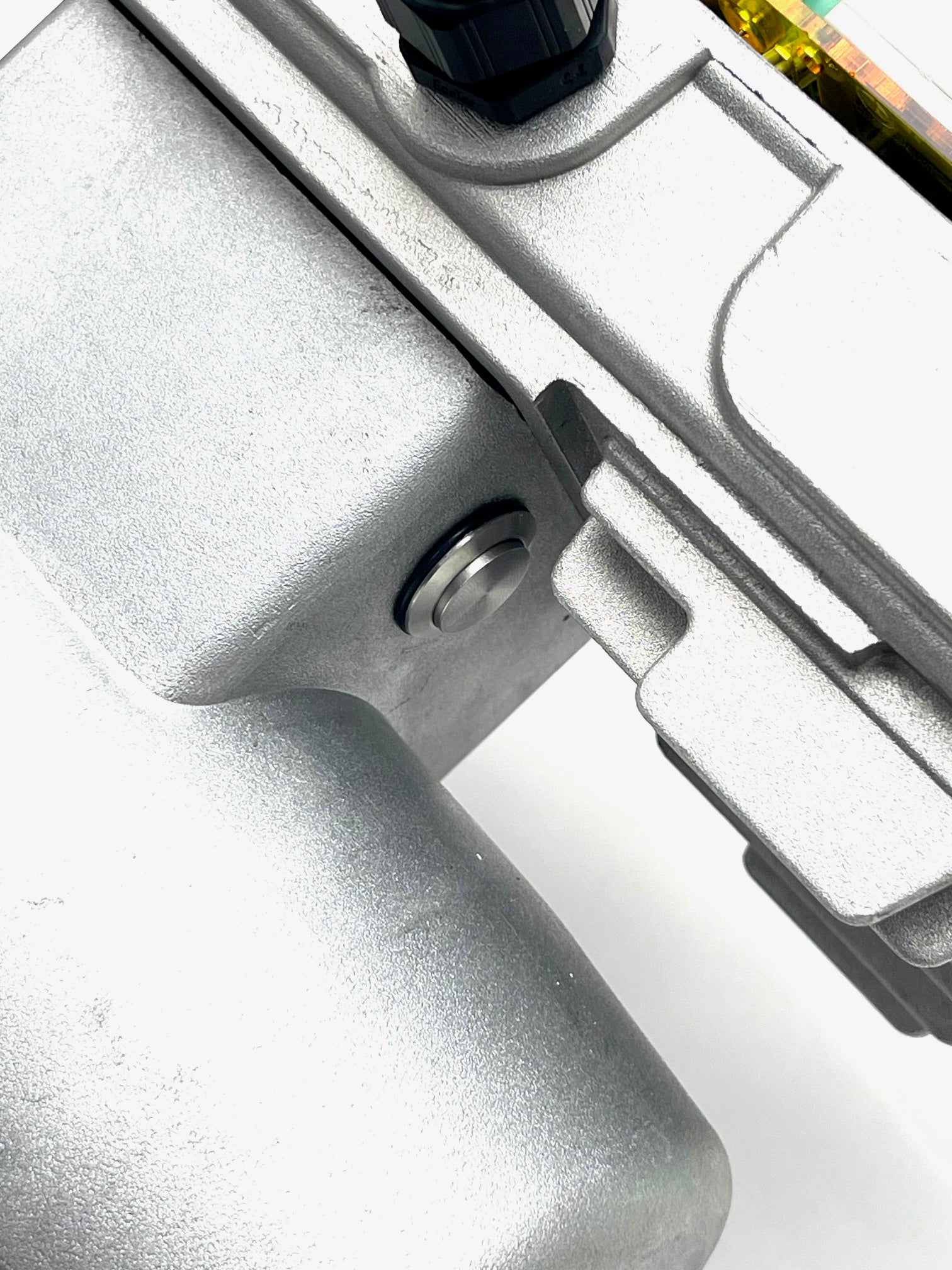

• Stainless Steel external remote learn button, simple 1 press for UP, 2 press for Down.  No need to remove water-tight cover.
• M12-8pin IP67 bulk head low voltage communication port for connecting Solacrion pre-wired UP and Down Limit Switches, as well as Solacrion Lock-Out Call stations.
• Fail proof plug & play design.  No wiring diagram needed.
• 12 foot UL 3-prong stinger included, simply plug into GFI protected outlet to power, no electrician required to install your lift system.
• On-board 12Vdc power supply for RF and accessories.
  • Optional: Solacrion® Call Station for key lockout remote control.
  • Optional UP Magnetic Limit switch
  • Optional DOWN Magnetic Limit Switch
  • Optional M12 8pin A code prewired cables.
  • Optional M12 8pin A code 1male 2 female T connector.

Drive Manual (opens in new window)
