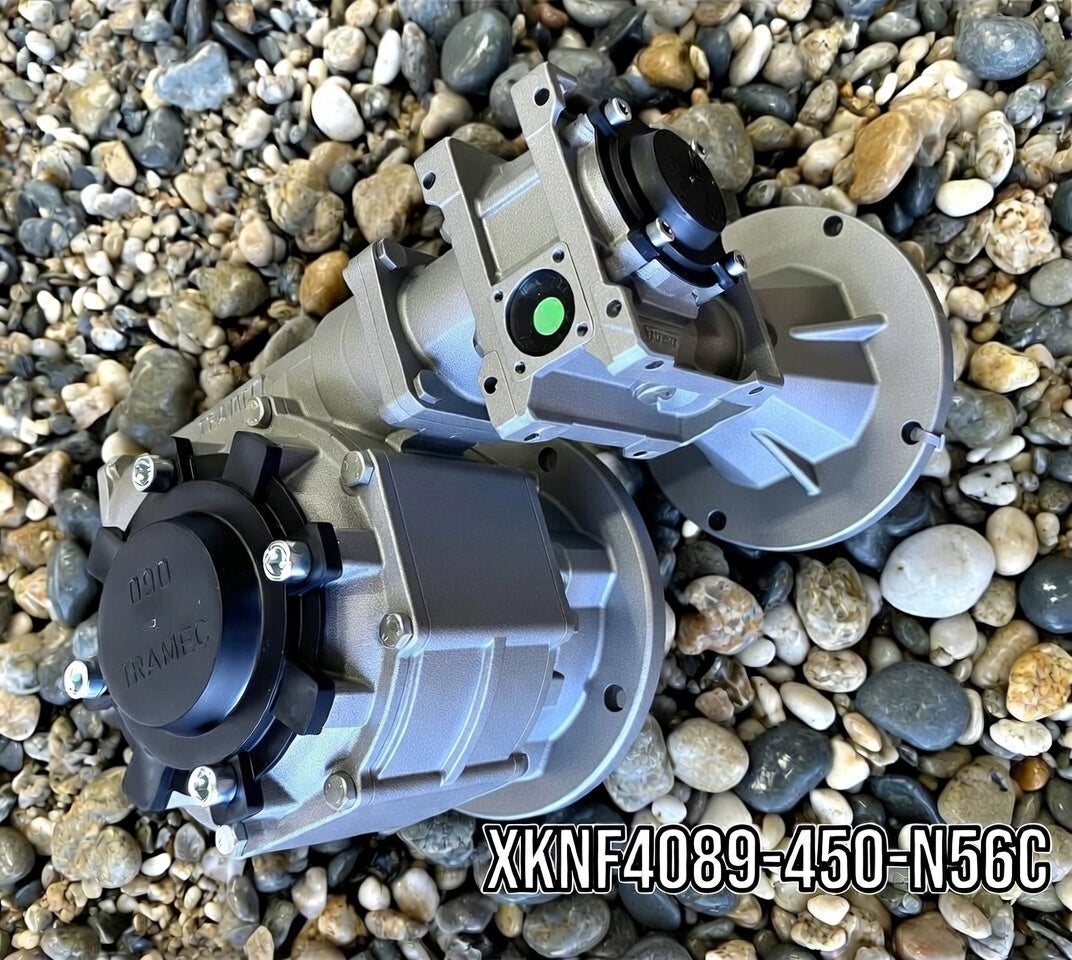

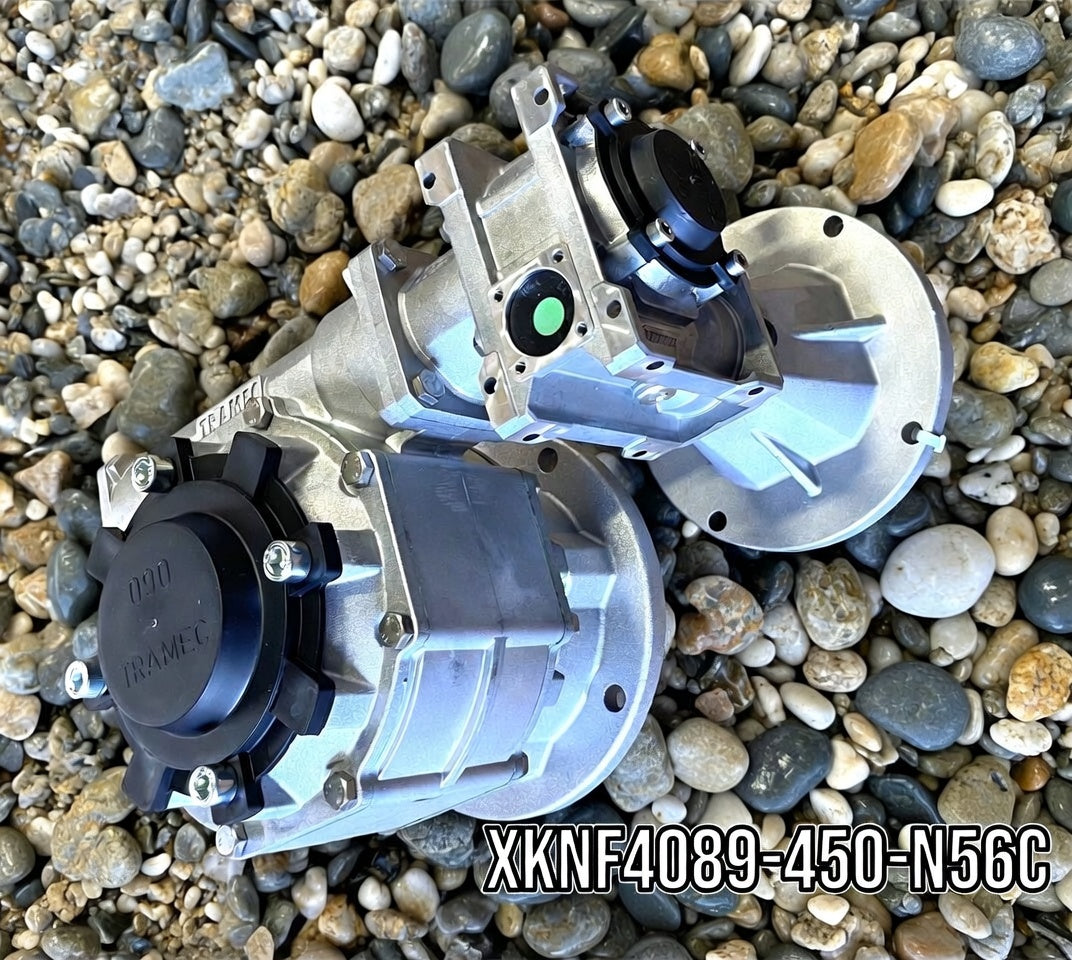

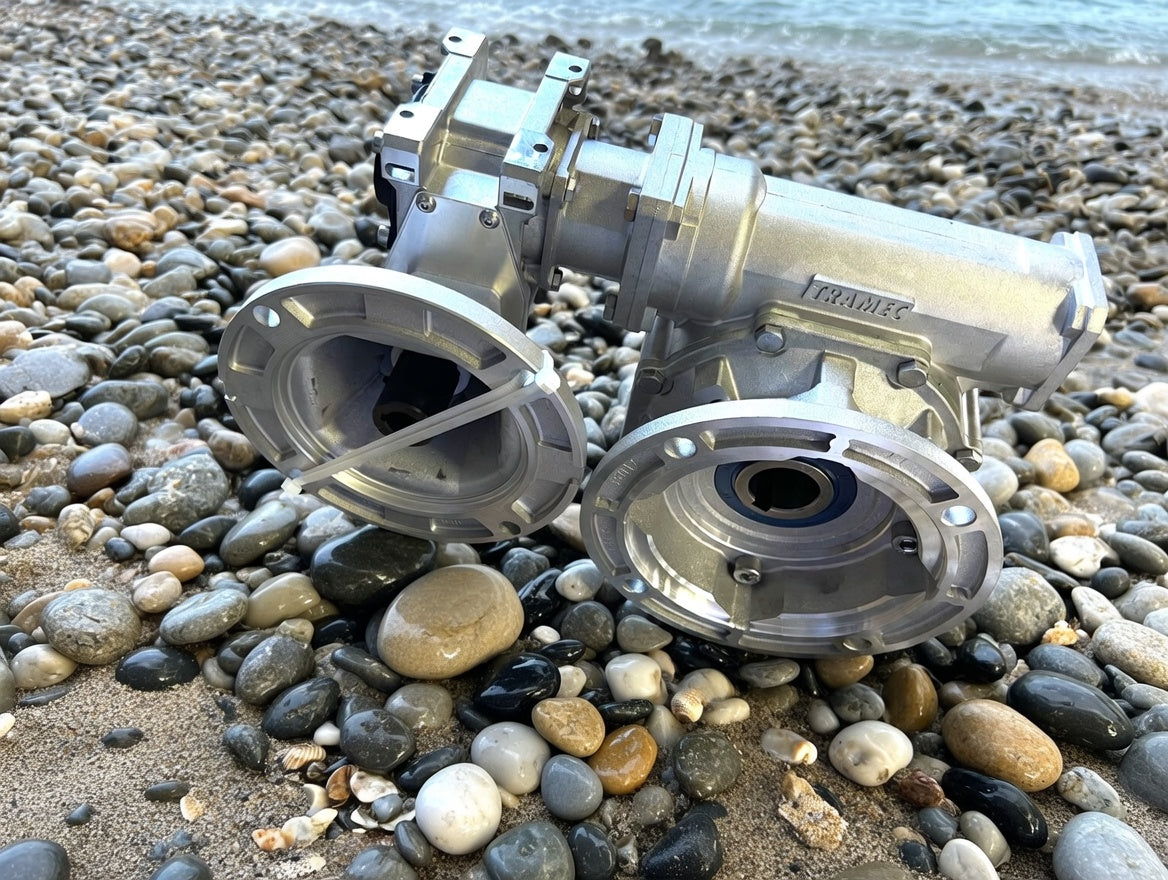

XKNF4089-450-N56C

Italian Design & Manufacture 40:90 Double Reduction Worm Reducer

• Made in Italy - not the Chinese cheap copy the major competitors offer.
• Steel Gear & Nylon Sleeve Gear-coupling NEMA 56C motor input.  Motor will never seize to gearbox, no thrust or misalignment will transfer from motor to gearbox.
• Fin-Free - High efficiency gearing & lubrication no need for heat-sink cooling fins.
• 450:1 reduction ratio 1:15 primary x 1:30 secondary.
• Chill Cast Bronze over heavy duty Iron hub worm wheel
• Precision machined, heat treated, and ground worm, Rc 58-62.
• Stainless Steel screws, sealed threads.
• 7000 lbs lift capacity with 1.5hp motor
• Output flange mounting for pile or overhead lifts.
• Maintenance Free for life Shell® Omala® S4 WE320 all Synthetic Gear oil.
• Double input seals BUNA-N synthetic rubber.
• Double lip output seals in BUNA-N synthetic rubber.
• 35mm hollow output bore - output shaft available as option. Click to open in new window.
• Safety covers.
• 60 month Manufactures warranty.

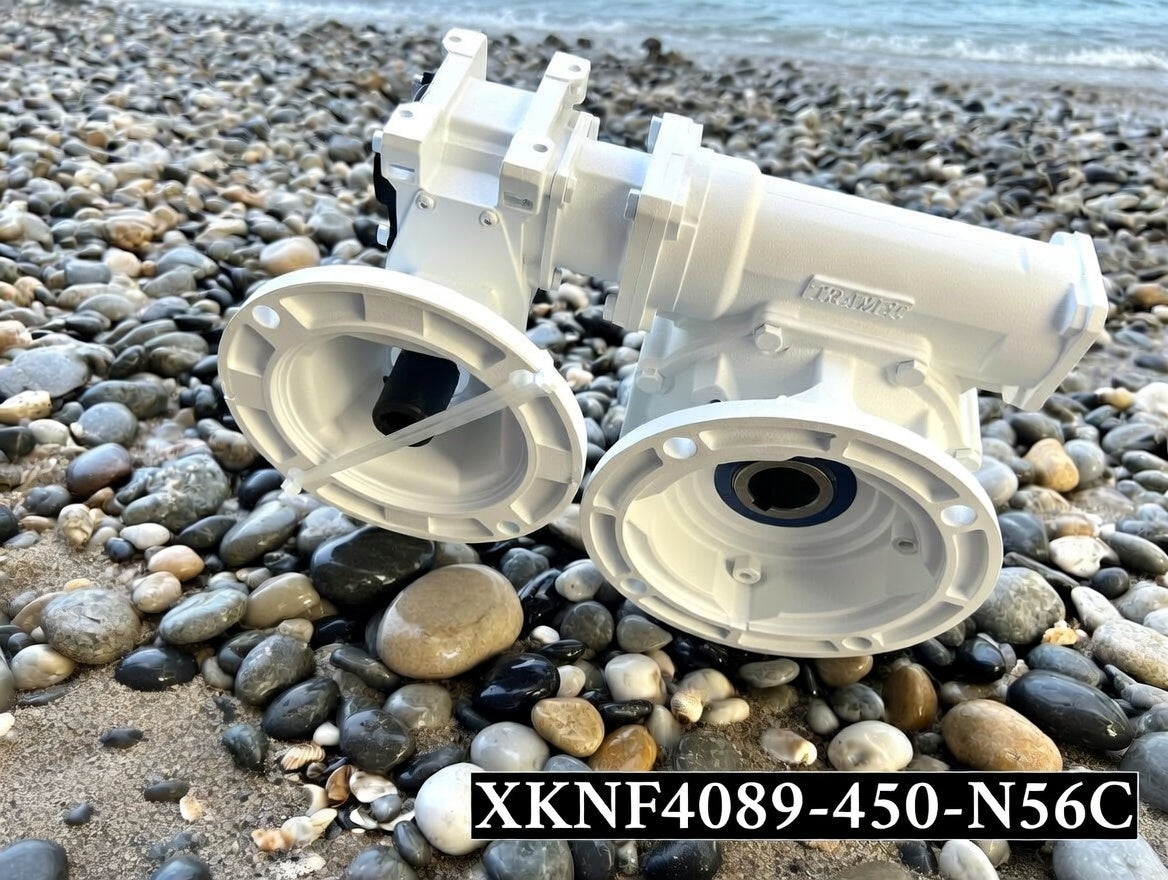

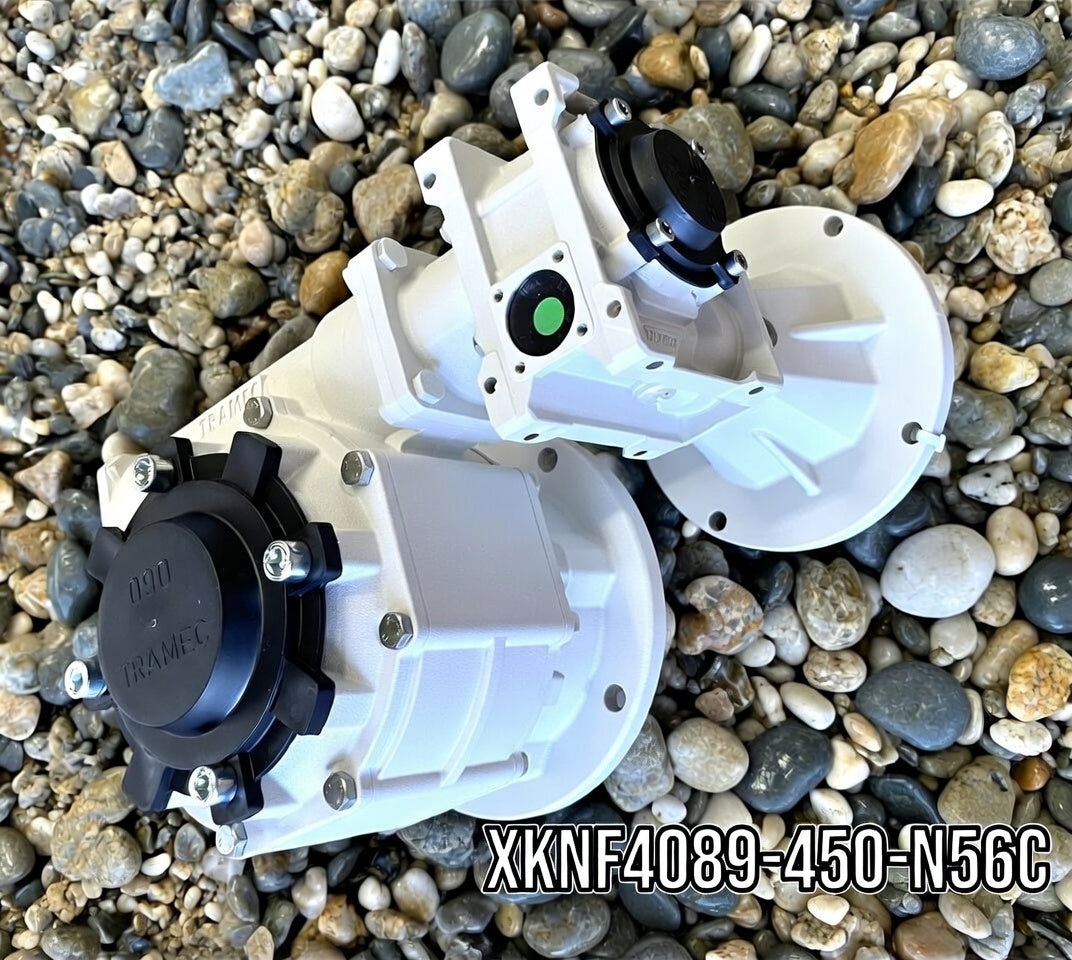

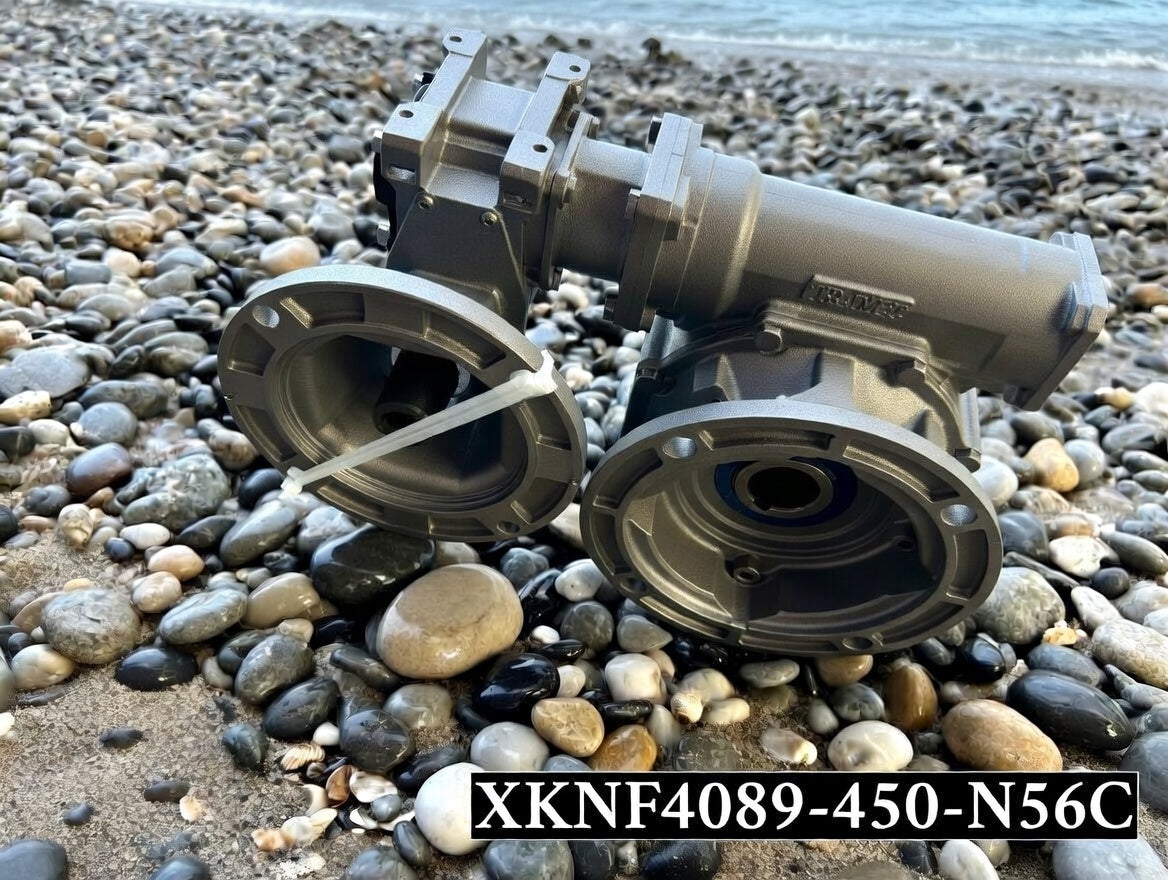

Available in as cast die-cast aluminum, STEEL-IT® Gray or White two coat Polyurethane with 316L micro-flakes to block corrosion and abrasion. USDA Approved. 50 year customer proven success.

Fully Crowned Steel Gear on worm input and Steel Gear on Motor shaft coupled by Nylon Sleeve.  All vibration, heat, misalignment is eliminated while making motor removal after many years of service exceptionally trouble free; typically only found on high-performance industrial drive systems.
