Solvie® 110Vac Complete Cargo Lift System

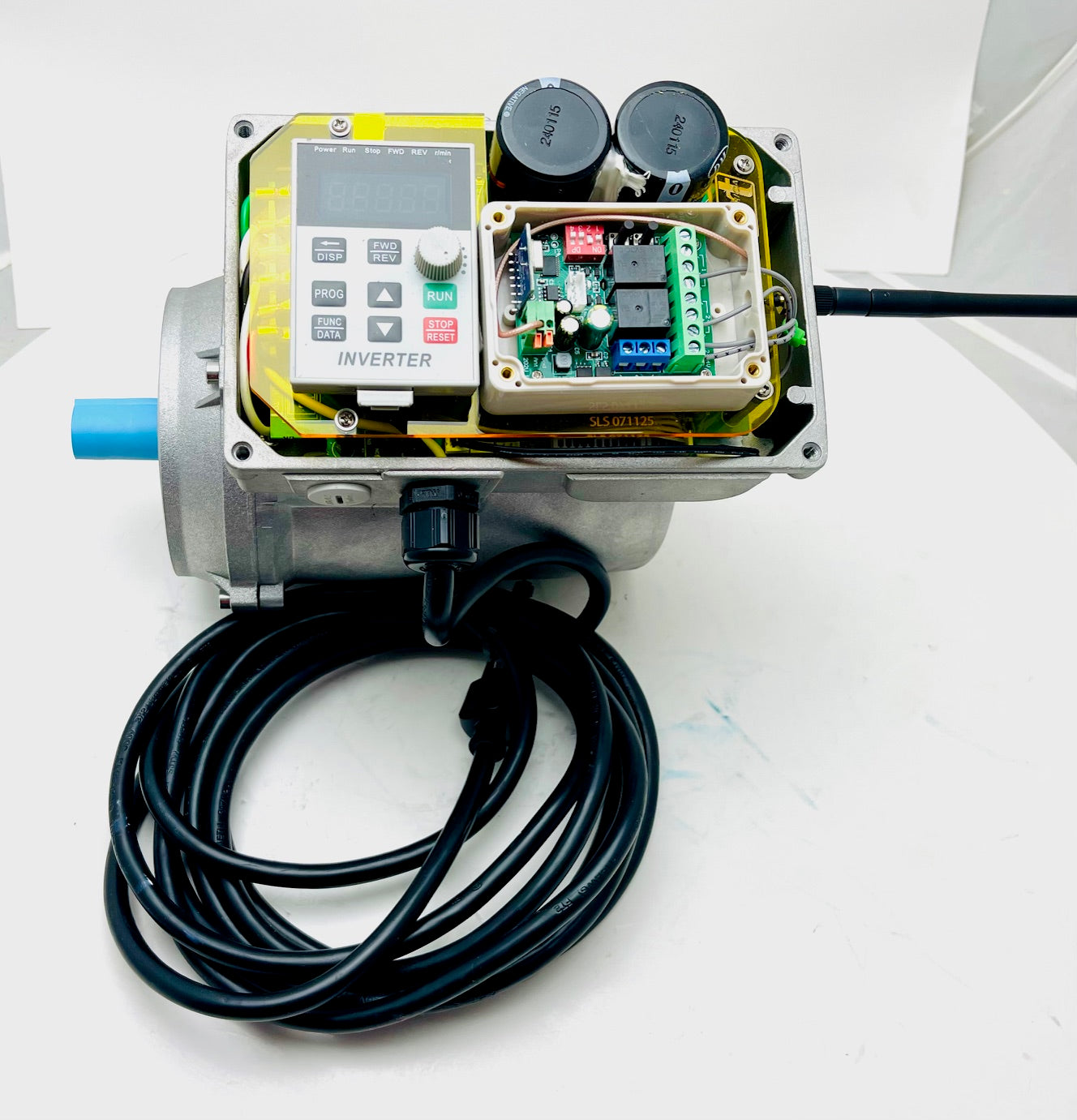

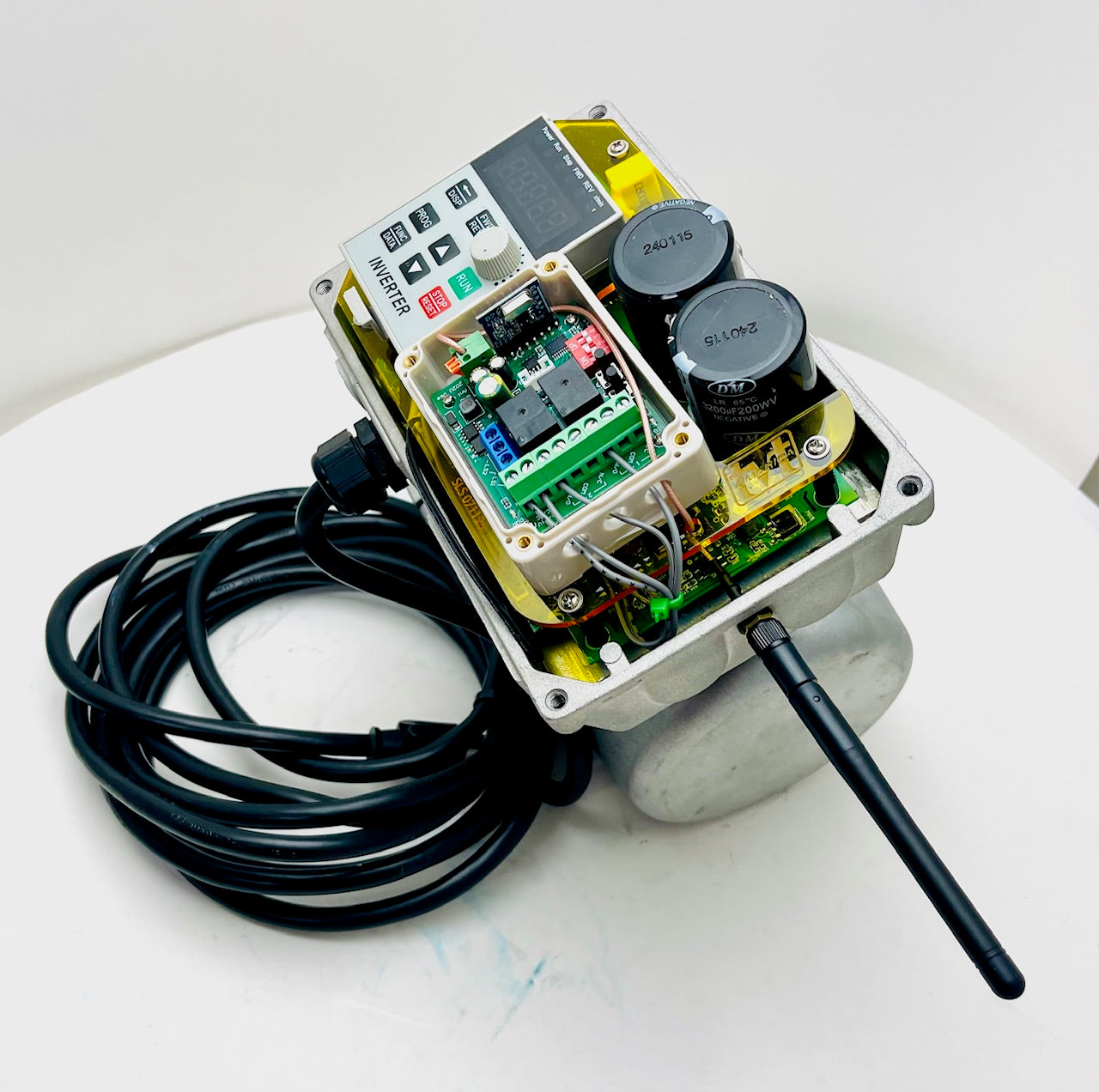

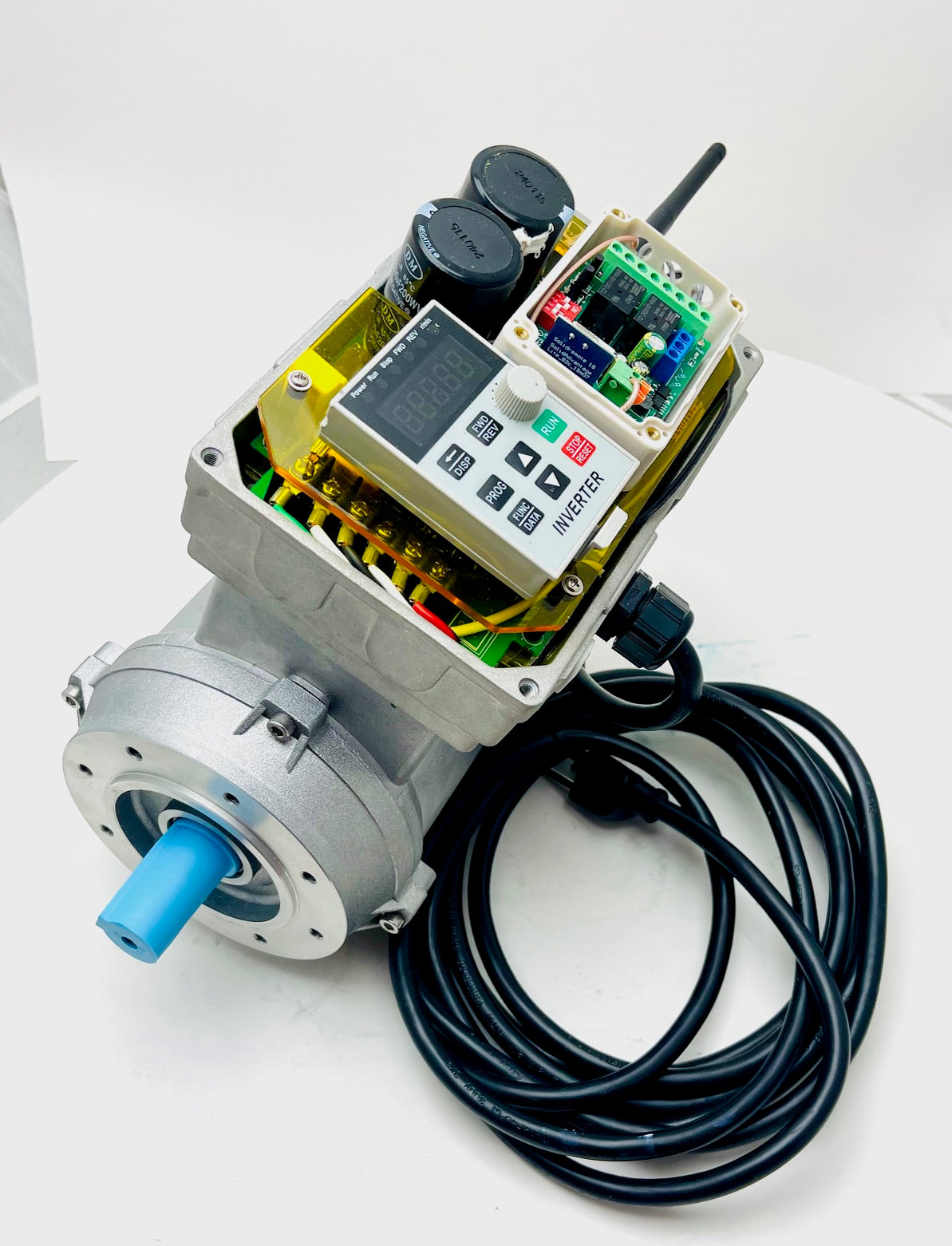

Solacrion® Integrated Motor-Drive-RF-2-stop control system.

• RF Integrated Remote Control

  • UP and DOWN normally open limit switch ready.
  • two UP/STOP/DOWN gel button 433Mhz remotes.
  • Easily integrated with Solacrion® Lock-Out Call Stations (sold separately)


• 115VAc 1phase to 230Vac 3phase Variable Frequency Drive
  • Adjustable Speeds, Up and Down can be at different travel rate.
  • Current limiting motor protection and/or load limit.
  • Adjustable acceleration and deceleration rate.
  • Diagnostic modes -
    • Amperage
    • Voltage
    • Fault history
    • Hours of operation.
  • Safe low voltage limit switch control.
  • Integrated programming, fault, and operation display.

  • Stainless Steel RF Learn Button - One press for UP, Two press for Down.

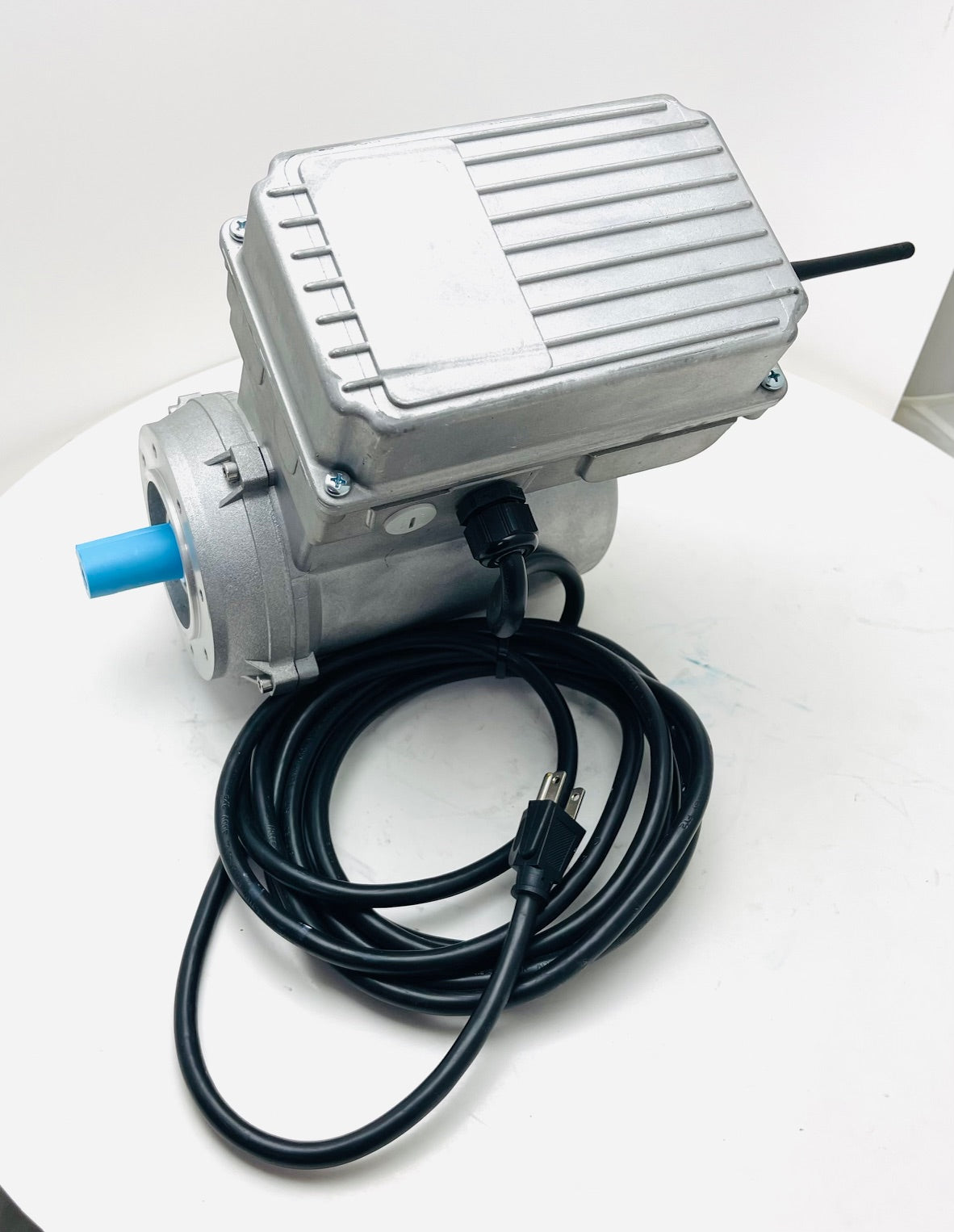

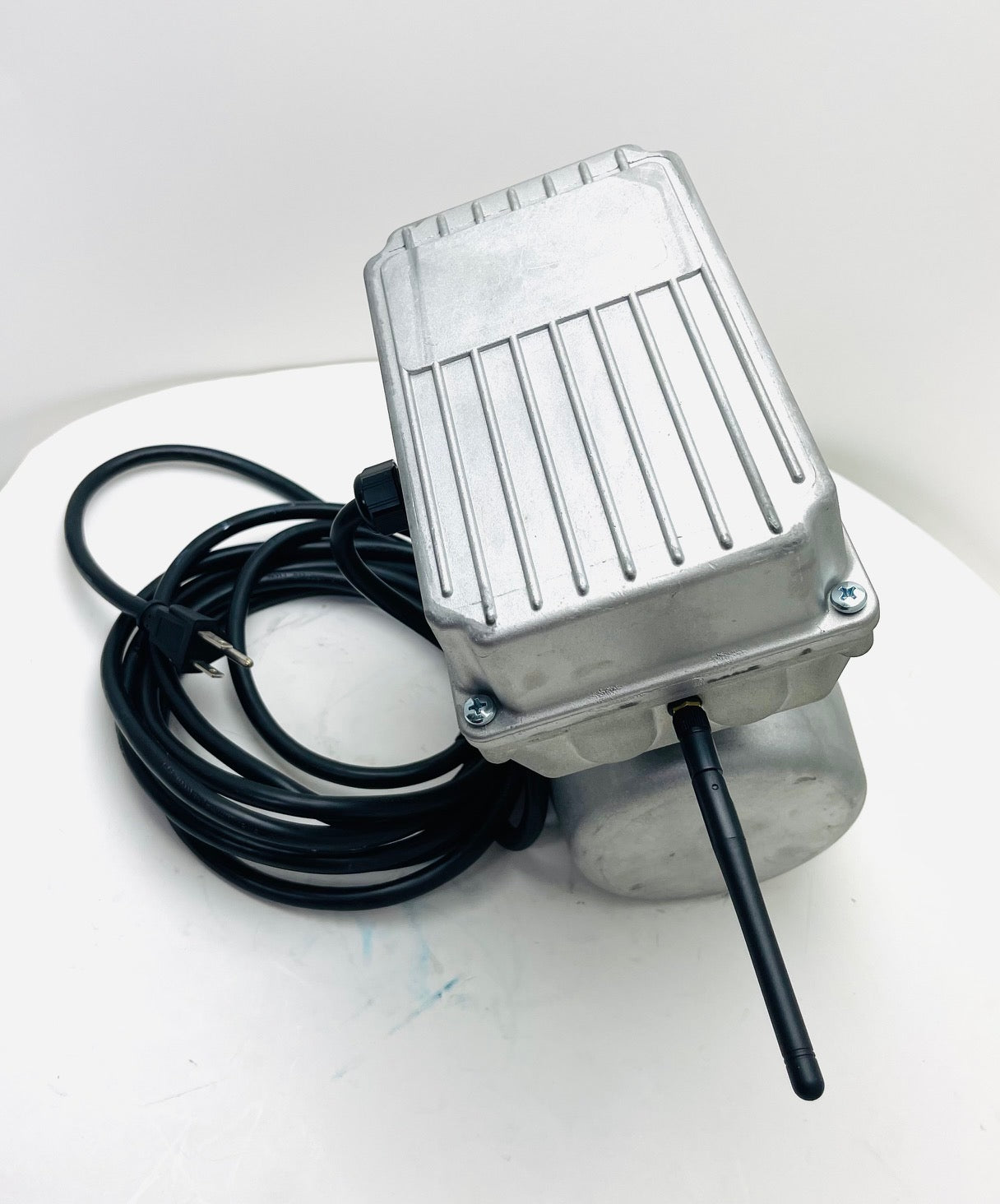

  • Integrated to SM80d4 motor, pre-wired, ready to install.
  • M12-8F IP67 Bulk head connector for communications.
  • 15 foot UL 3-prong cord, no electrician required on job-site.
  • Designed & Manufactured in U.S.A.

• SM80d4 - Marine Duty Industrial Motor.
  • 1.3kW (1.73hp) rating.
  • 3phase 110∆/230Y-60hz
  • 4pole 1680rpm
  • Epoxy Incapsulated Stator & Terminal box.
  • IP66 Water & Dust Proof two-piece construction.
  • BUNA-N double lip rotor shaft seal.
  • 6205-2RS sealed ball bearings.
  • Designed Specifically for Industrial Marine Applications.
  • 100% Designed & Manufactured in Italy.

• Complete M12-8MF plug & play low voltage communication

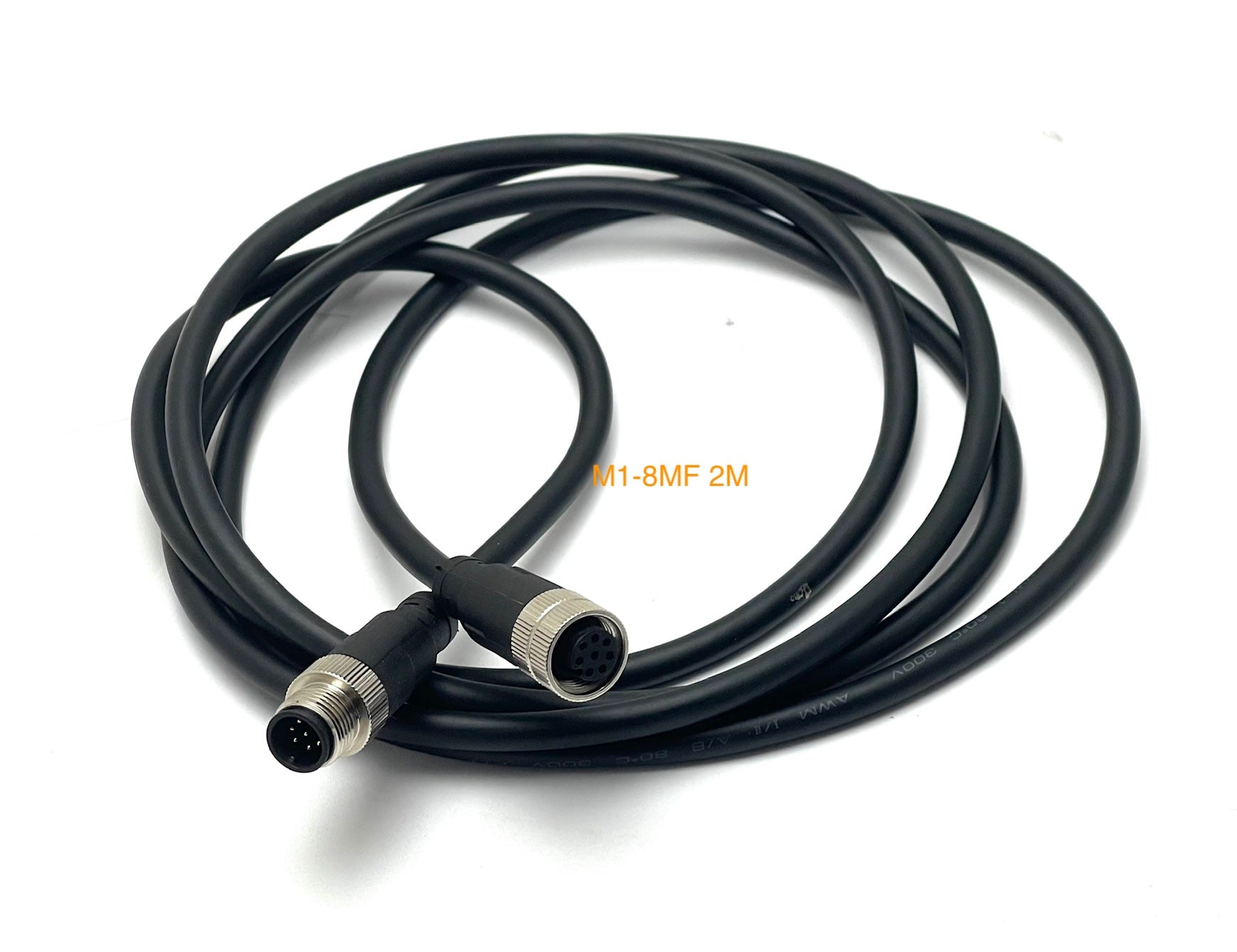

  • ONE M12-8MF 2 Meter communication cable from Solacrion to M12-8-1F/2M T junction.

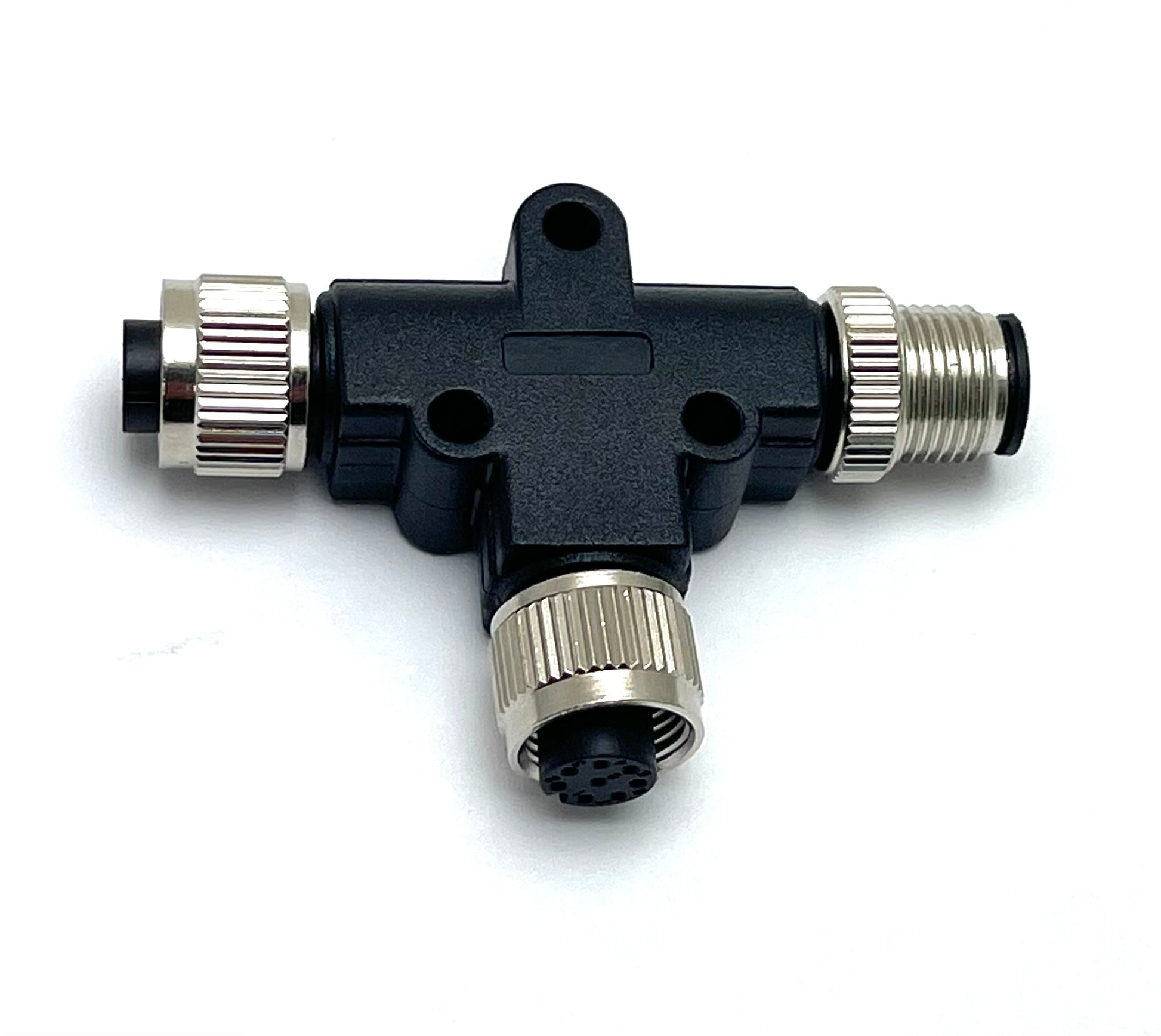

  • One M12-8-1F/2M T junction.

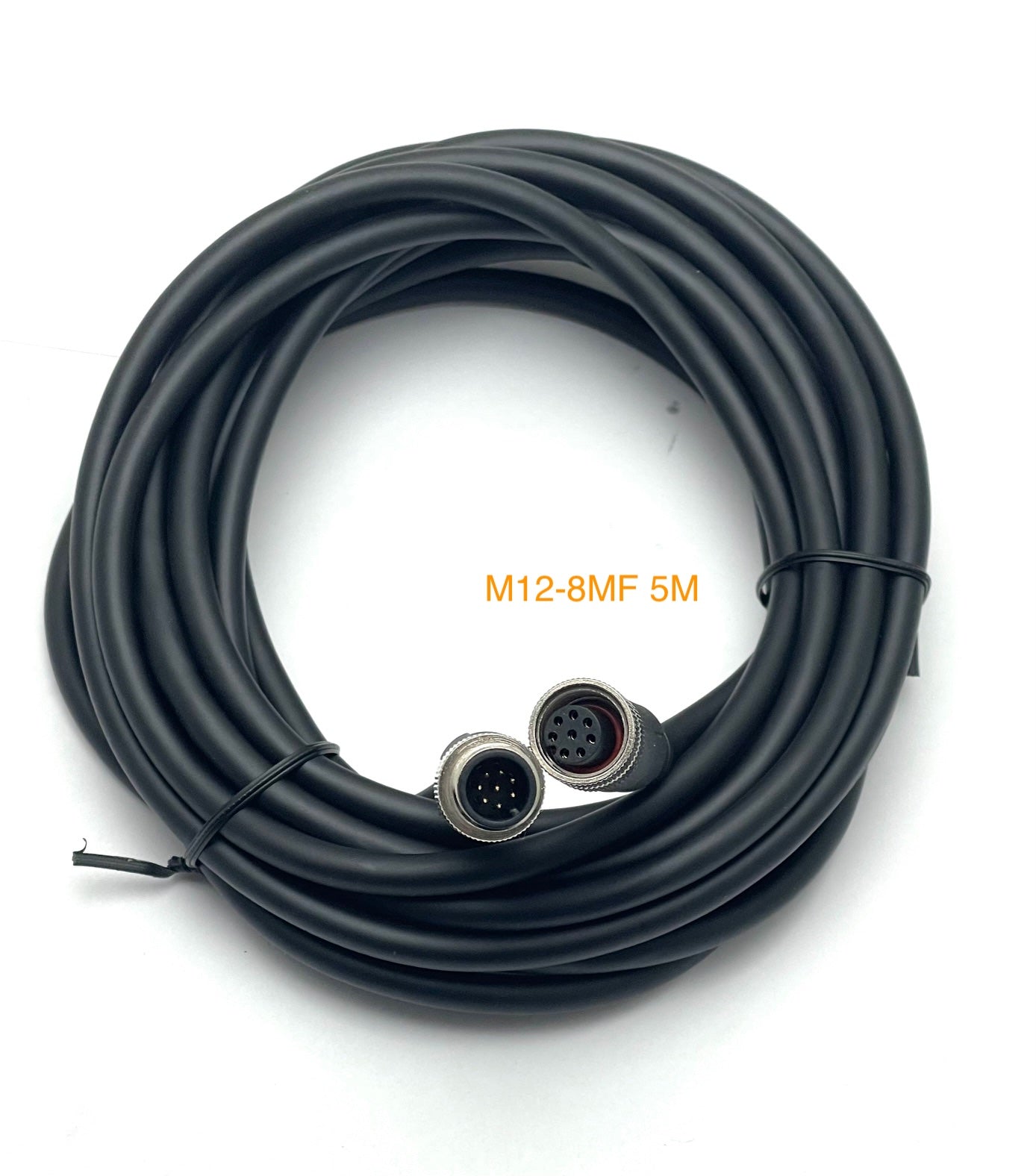

  • One M12-8MF 5 meter communication cable to connect M12-8-1F/2M T-juction to DOWN limit switch.
  • One Solacrion-UP Limit switch with trigger magnet and M12-8M connector pre-wired for UP limit switch position. IP67
  • One Solcrion-DN Limit switch with trigger magnet and M12-8M connector pre-wired for Down limit switch position. IP67

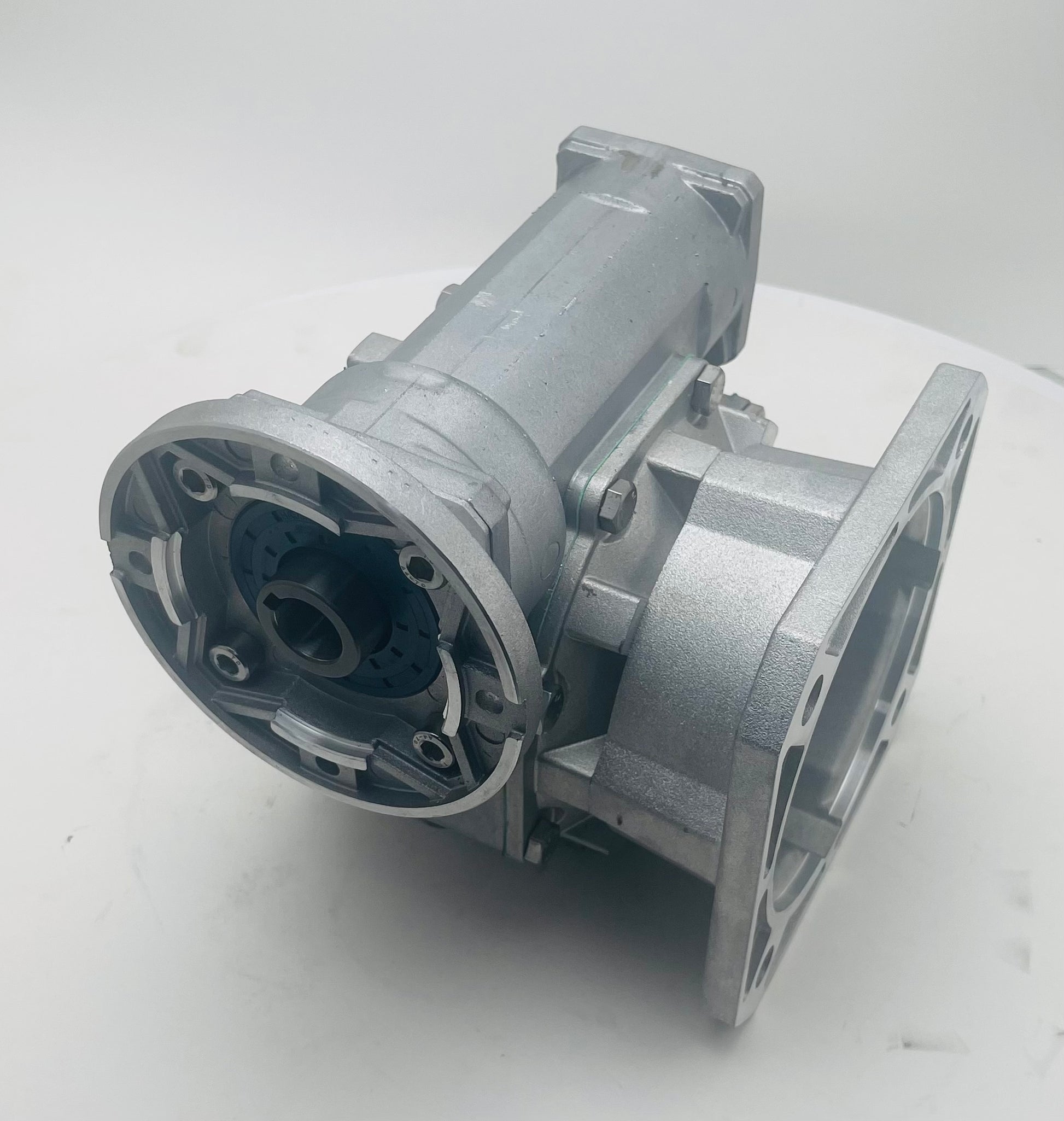

• KC75 80 120/19 V6 - Compact Worm & Gear Reducer.
  •  75mm center distance
  • 1/80 reduction ratio
  • IEC 80B14 Close coupled motor adapter input.
  • Maintenance Free Synthetic Lubed for life.
  • Double input seals - leak protection
  • Worm specially designed for lifting applications to maximize self-locking.
  • Stainless Steel Fasteners.
  • Anti-corrosive paint free aluminum casting.
  • Designed & Manufactured in Italy.

•  KC75 output cover kit.
  • Complete with Stainless Steel Fasteners
  • Injection Molded ABS Plastic

• Single size 75mm Drive Shaft
  • 1.250" (31.75mm)
  • Feather Key and Thrust Washer with Screw for secure fixing to gearbox.

Solacrion® Drive Manual (opens in new window)

CAD File for KC75 Gearbox (3D .stp file).    Spec Sheet (.pdf) for KC75 (open in new window)
