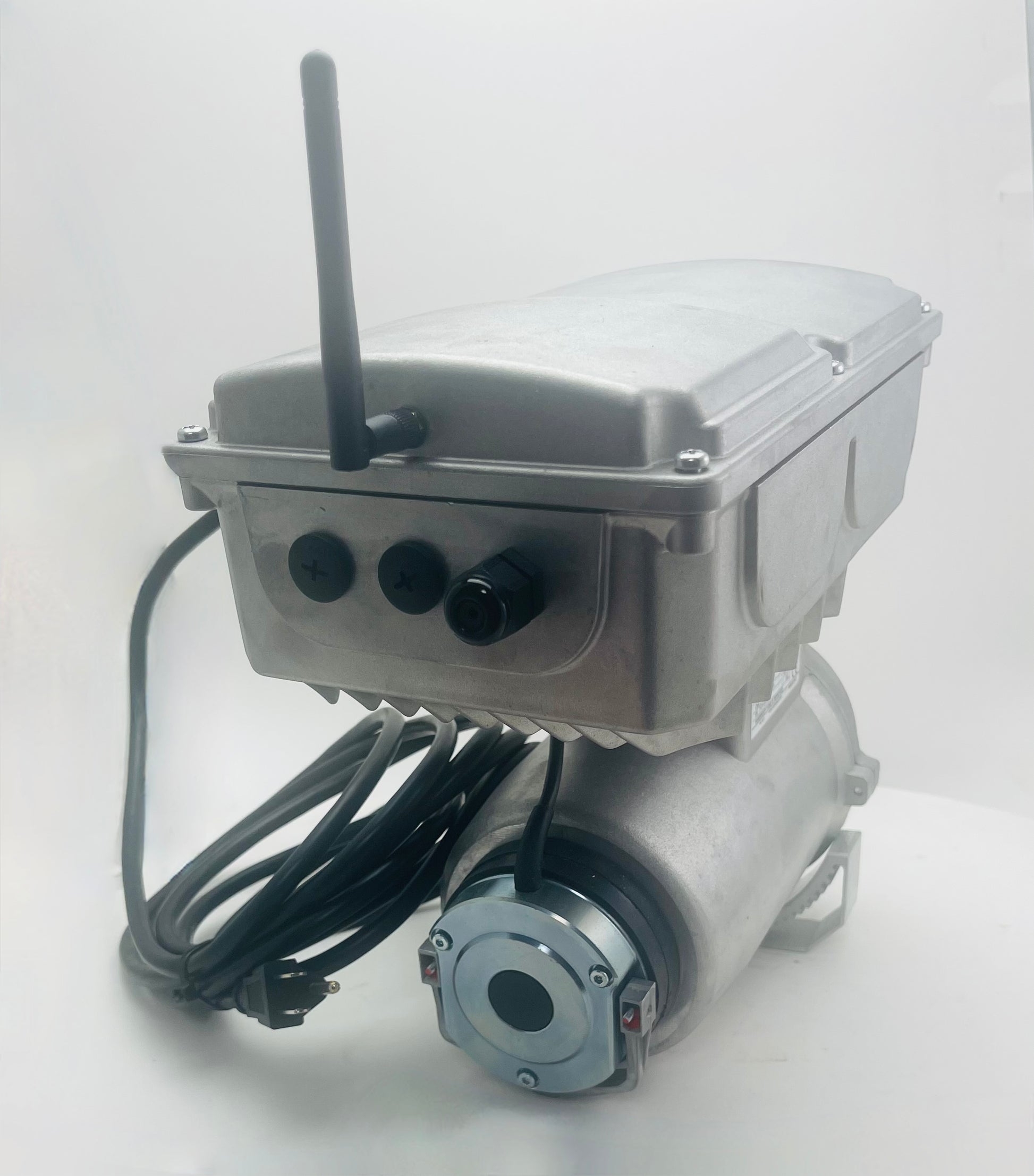

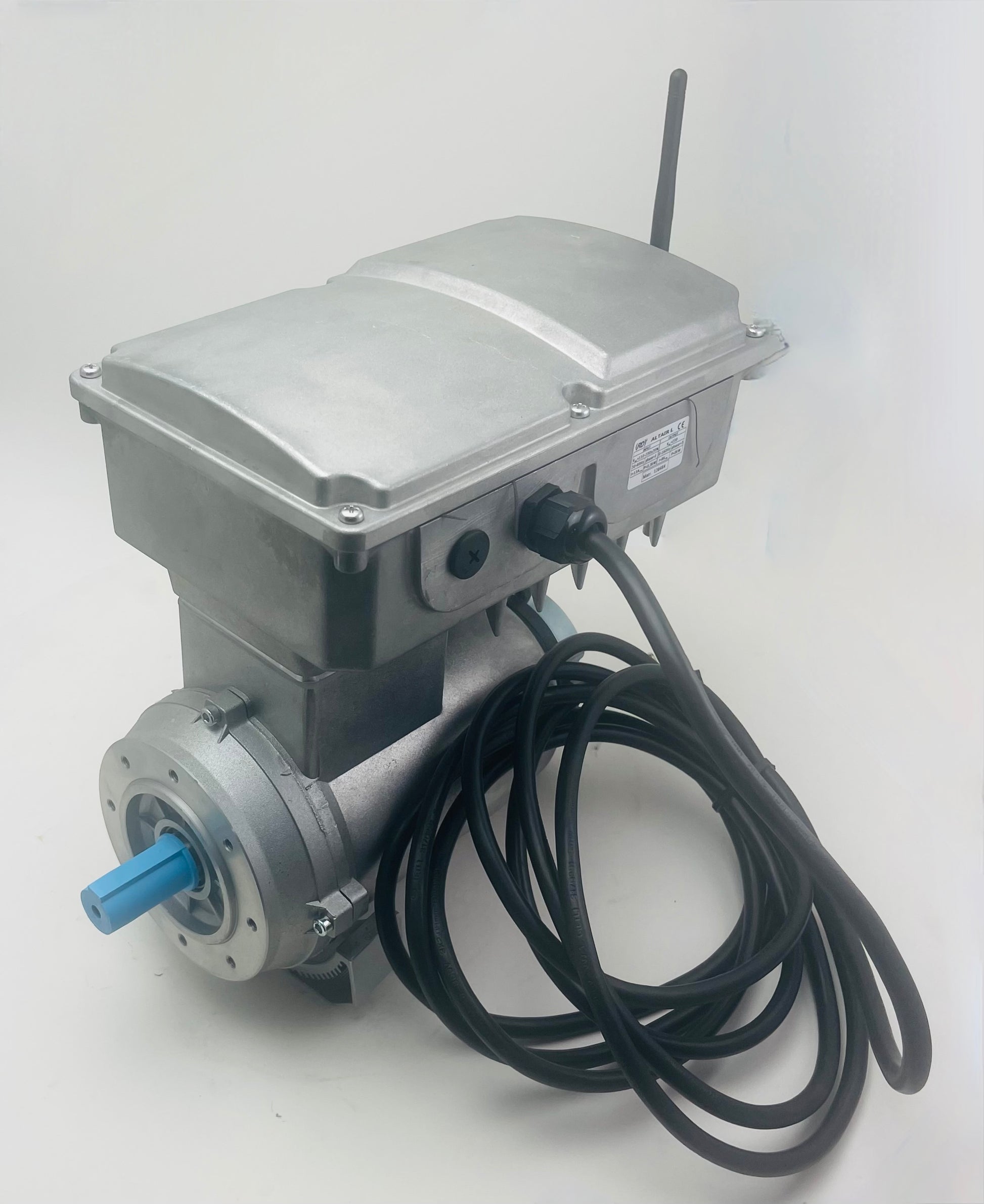

Solvie Lift System with Marine Brake-Motor - 110V/1ph

Solvie 2 stop Lift System  110-120Vac 1PH With Marine Brake Motor

• 1.5 Hp at 1700 rpm.
• 54 in-lbs run torque
• 150% starting torque for 90 seconds standard.
• Spring Applied Brake with electro-magnetic release, programable on/off, preset to open brake immediately after begin of run cycle, present to close brake just before stopping.
• 12Vdc power supply for integrated Radio Frequency Control.
• Programable soft start/stop (preset to 1.5 seconds, but fully adjustable).
• Adjustable speed 300 to 3400 rpm, forward or reverse independent speed setting possible.
• Programable current limit & motor overload protection.
• Integrated 2 Normally Closed limit switch circuits for auto-run/stop systems.
• Radio Frequency UP/STOP/DOWN control included.  Can be deadman (maintain button closed to move) or Limit switch (up or down until limit switch is reached and circuit opens).
• Two pre-programmed RF remotes included, each with millions of possible digital keys, your neighbors boat or cargo lift system has a 1/10,000,000 chance of being same key.
• Integrates with SLS Wireless Call Stations.
• 12 foot UL 3-prong stinger included, simply plug into GFI protected outlet to power, no electrician required to install your lift system.
• On-board 12Vdc power supply for RF and accessories.
• IEC 80B14 connection for SLS Gear Reducers (Cargo, Platform, and Boat Lifts)

Drive Manual (opens in new window)
