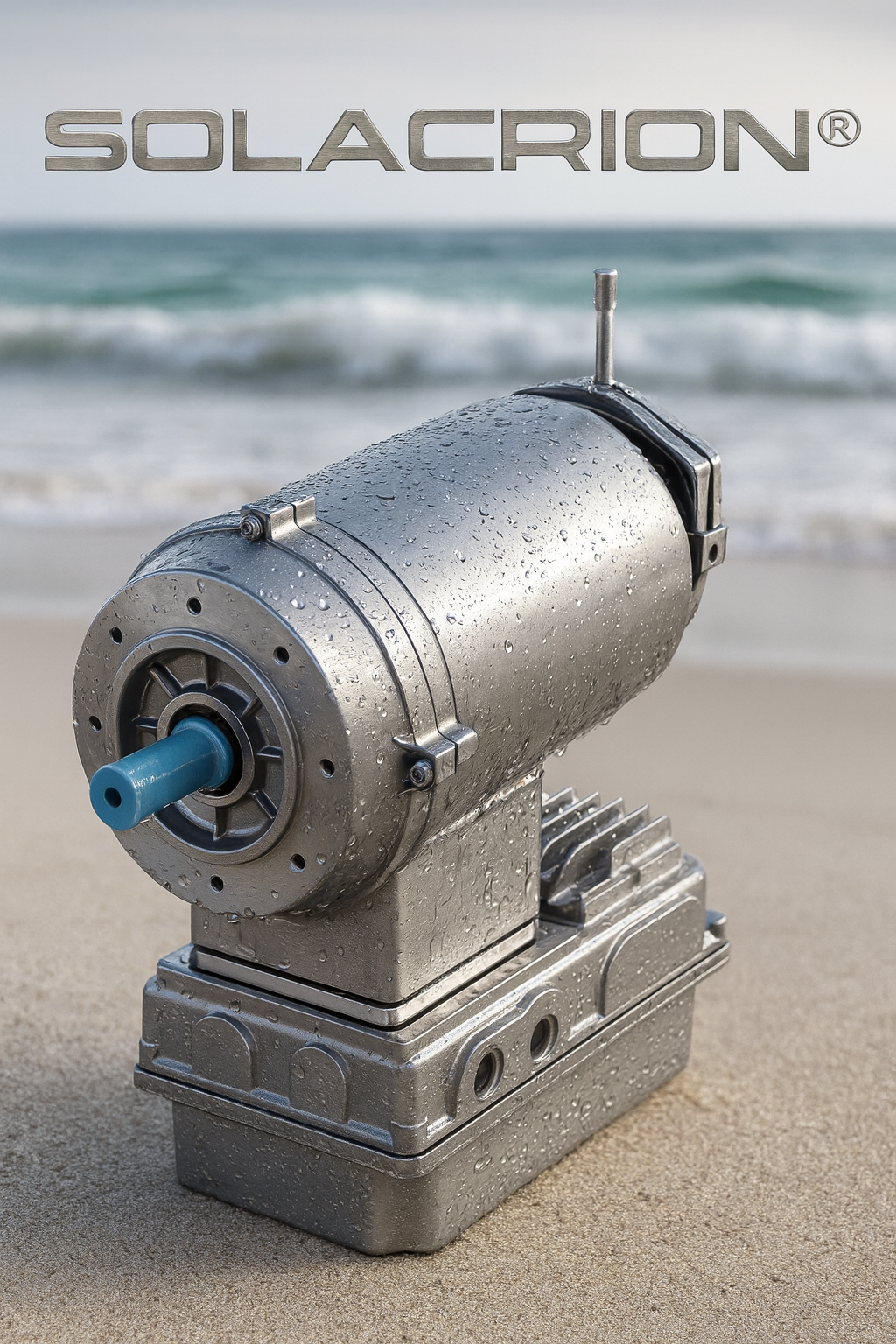

Legacy - 230V/1ph 1.5hp brake-motor with EM01+

EM01+ 230V/1ph Drive to 230V 3ph brake-motor system.

• Quiet Operation - motor is silent.
• 1.5 horse power at 1700 rpm.
• 150% starting torque for 90 seconds standard.
• Programable soft start/stop (preset to 1.5 seconds, but fully adjustable).

• Adjustable travel rate, current limit, over temp protection, and diagnostics with use of HMI sold separately.
• 110Vac to 103Vdc rectified brake control pre-wired and integrated into system.
• Fail-Safe Power off braking can be programmed to engage prior to full stop.
• Eliminates back-drive potential.
• IP66
• Manual brake release for power off release if necessary.

• 304 stainless steel hardware over die-cast corrosion resistant treated aluminum body.

EM01+ drive manual (opens in new window) .pdf
