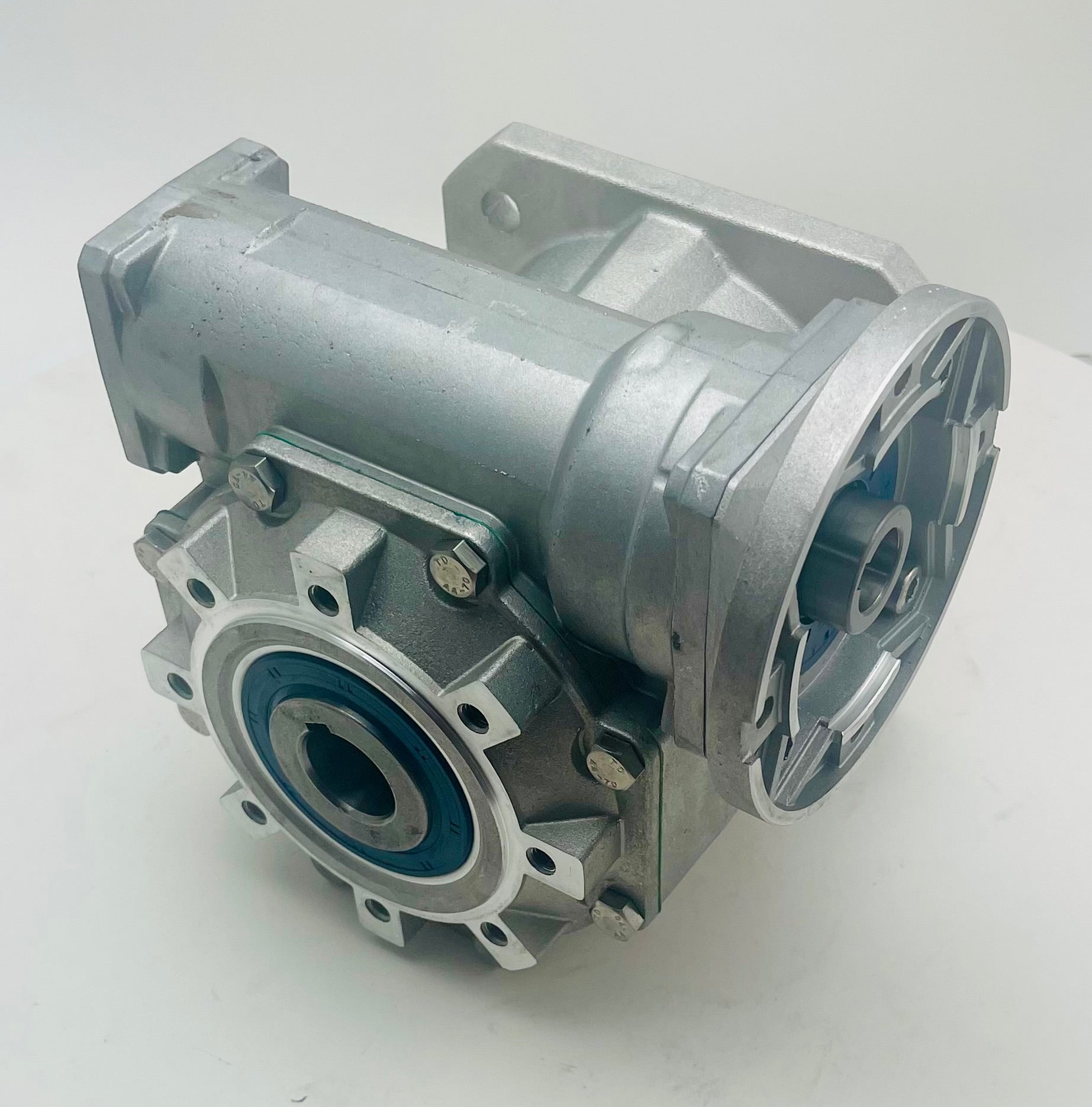

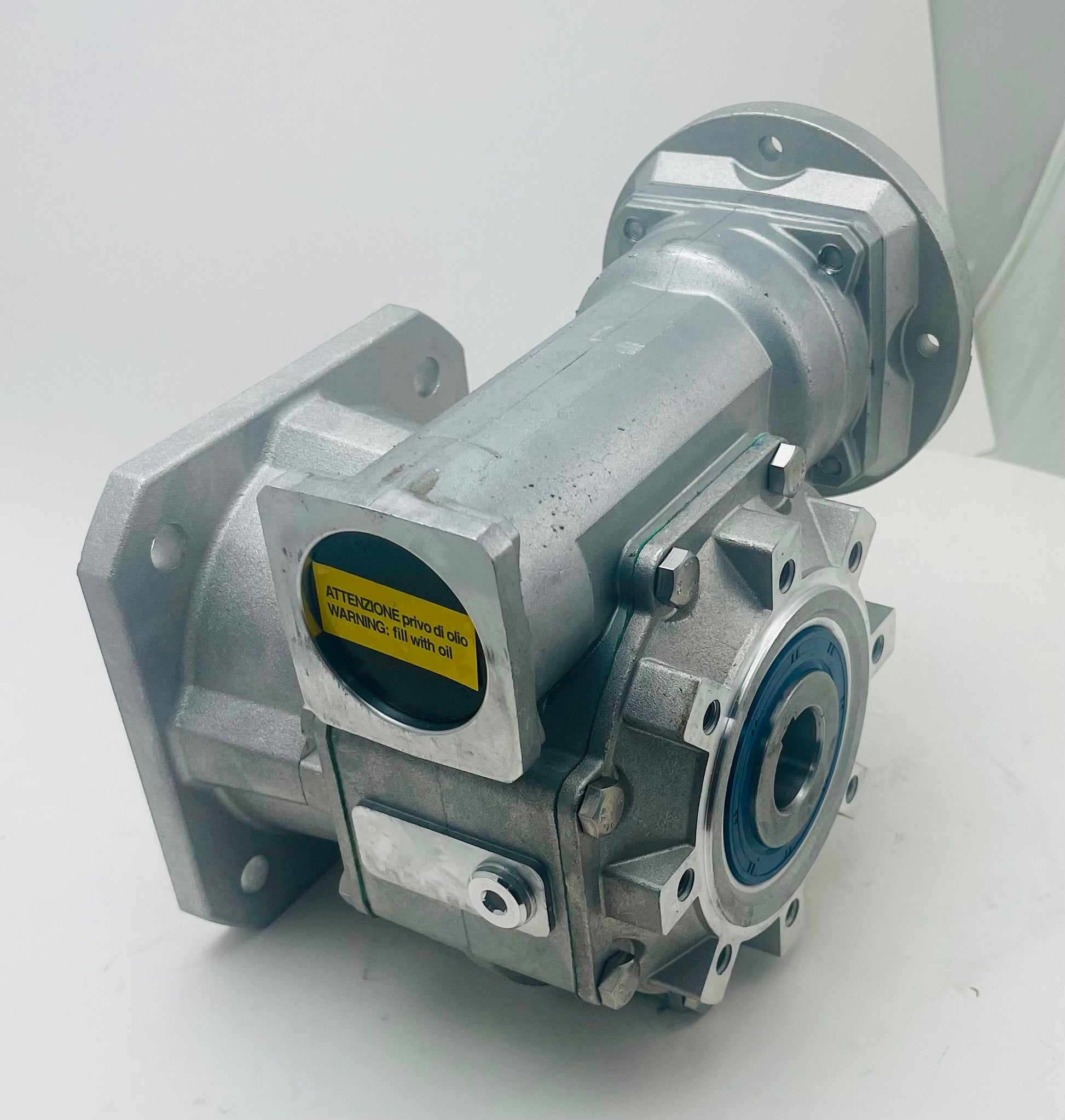

KC75 80 H28 80B14 V6 F1 CargoLift Gearbox

TVT® K series Worm Gear Reducer for Cargo Lifts-

• 75mm center distance worm-gear reducer; 2.95".
• 1:80 reduction ratio. 1800rpm input / 80 ratio = 22.5 rpm output.
• Enhanced self-locking features - tight shimmed, double seal, special surface treatment to worm.
• IEC 80B14 motor adapter input (ideal with T80 Marine duty motors or AT80 marine duty brake motors.
• Corrosion resistant aluminum die-cast housing
• Stainless steel hardware (motor to gearbox mounting screws sold separately).
• 28mm H7 tolerance hollow bore with keyway. 1.250" output drive shaft sold separately.
• Non-drive side output cover available.
• Complete with "F1" 160mm x 160mm square output flange kit, which can be mounted on LEFT or RIGHT output of gearbox as desired.
• Rated 191NM, 1695 in-lbs output torque.
• Shipped without lubrication.  Requires 260 milliliters for V6 motor down horizontal output mounting.
• SPECIFICATION SHEET -  Download .pdf file that will open in new page.
• 3D CAD FILE (.stp) Download
• 20lbs shipping weight.
• 100% Designed & Manufactured in Italy. Assembled in U.S.A.
